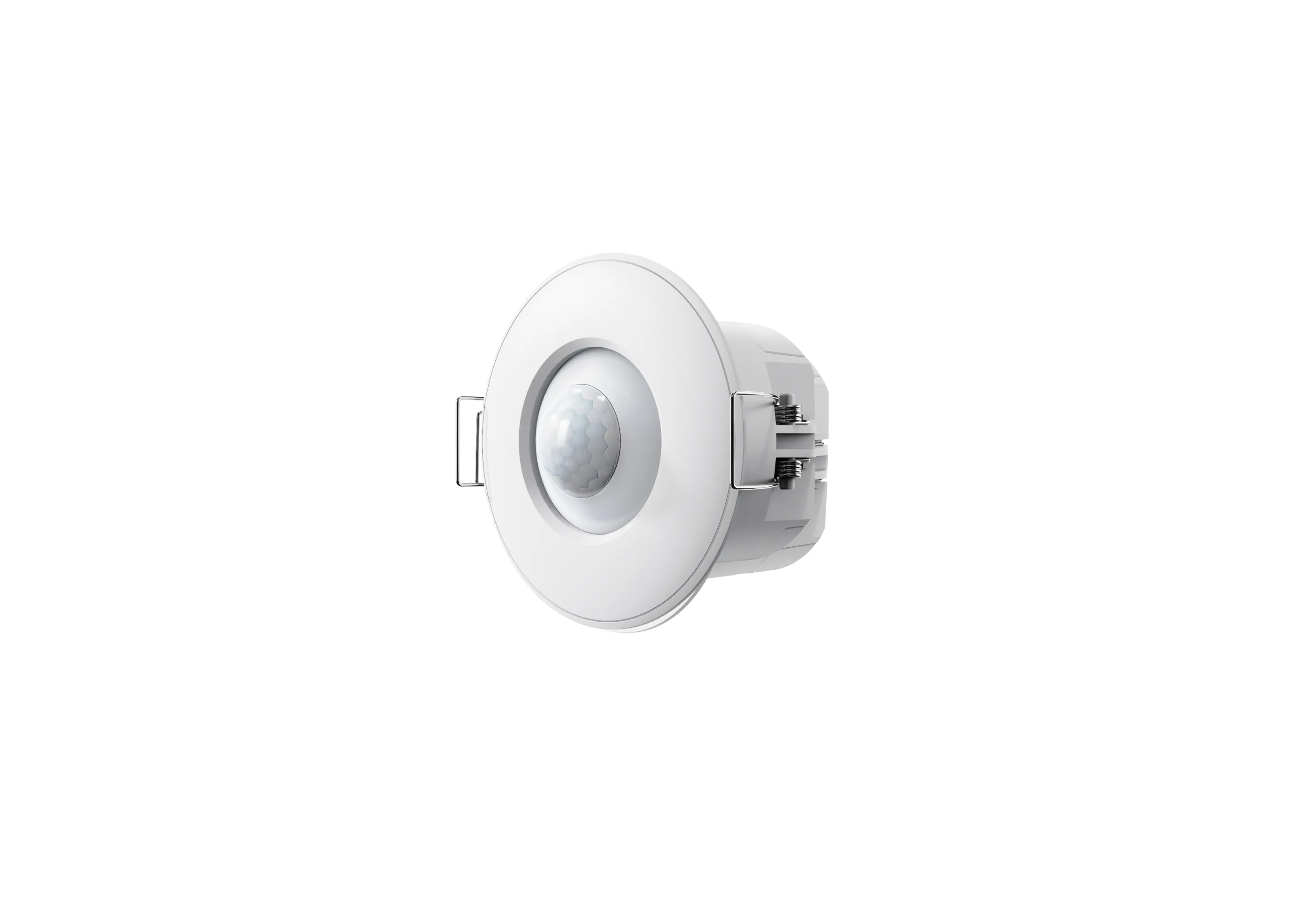

KNX Motion Sensor,PIR (KNX Secure)

Function:
Diameter/radius 14 meters, max. mounting height 12 meters.
Uses pyroelectric infrared detection technology.
Supports 4 presence detector channels, with the first channel featuring 3-level control.
Master/slave working mode, constant lighting control, RTC controller, logic, and scene group functions.
Supports KNX secure protocol.

Model: DSN.MOT.3-S

• Power: KNX Bus only
• Consumption: Bus 6.5mA
• Installation: Ceiling-mounted/Wall-mounted, fits in 86×86mm and 60×60mm (German standard) wall boxes

Dimensions (mm): φ70 × 51.5 mm
