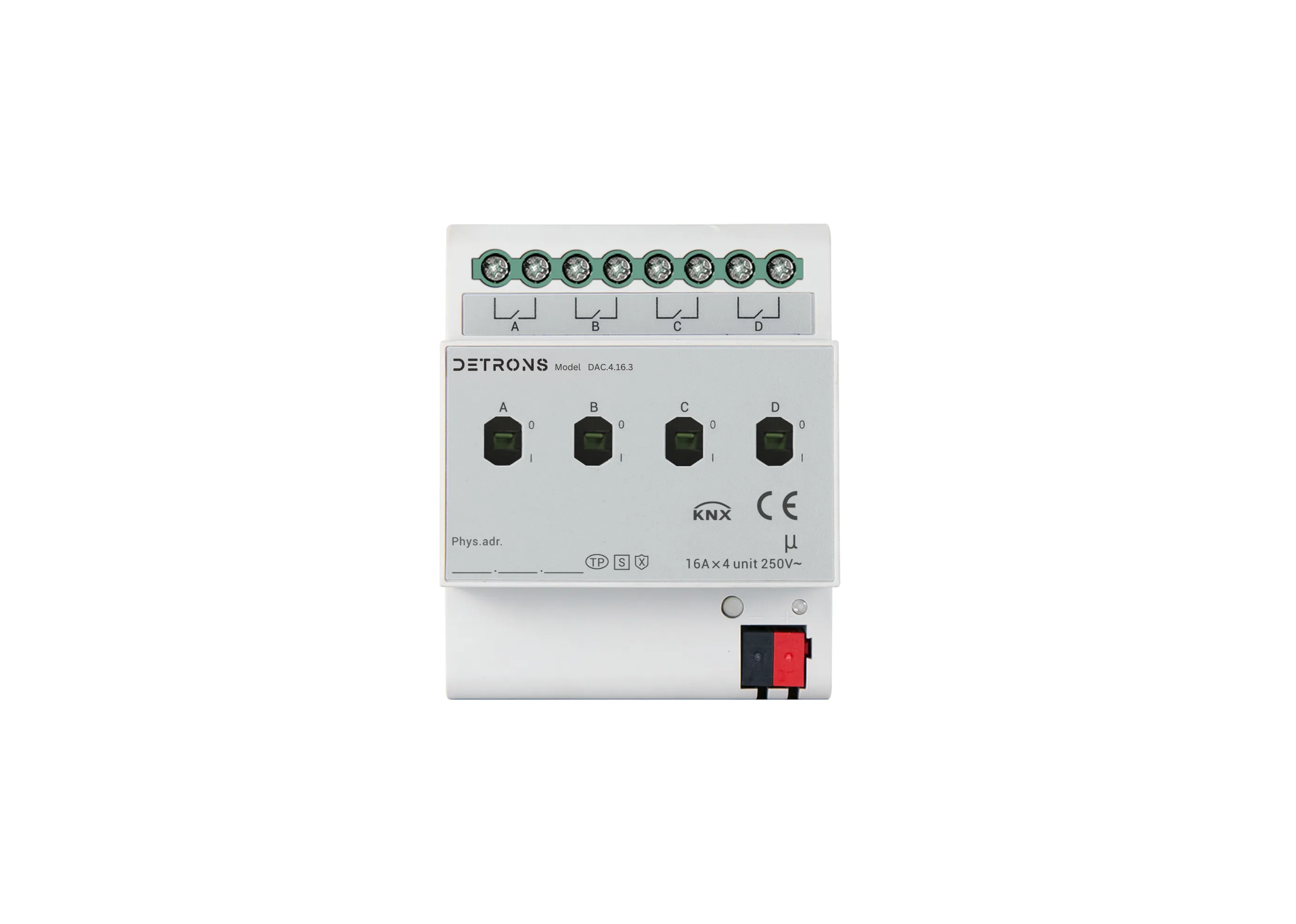

KNX Switch Actuator 4-Fold, 16A

Power: KNX Bus only
Consumption: Bus 12mA (Secure: 6.5mA)
Installation: DIN-rail Mounted

Model:

• DA.4.16.3 (Normal)
• DA.4.16.3-S (Secure)
• DAC.4.16.3 Current Measurement (Normal)
• DAC.4.16.3-S Current Measurement (Secure)

Specifications:

• 16A per channel
• Rated voltage (Un): 250V AC, 50/60Hz
• Switch type: High-current magnetic relay
• Operation mode: Switch/Heating actuator
• Main KNX functions: Switching, status response, scene control (Normal: 5 folds / Secure: 8 folds), time switching, preset, logic function, threshold, forced operation, etc.

Dimensions (mm): 72 × 90 × 64
