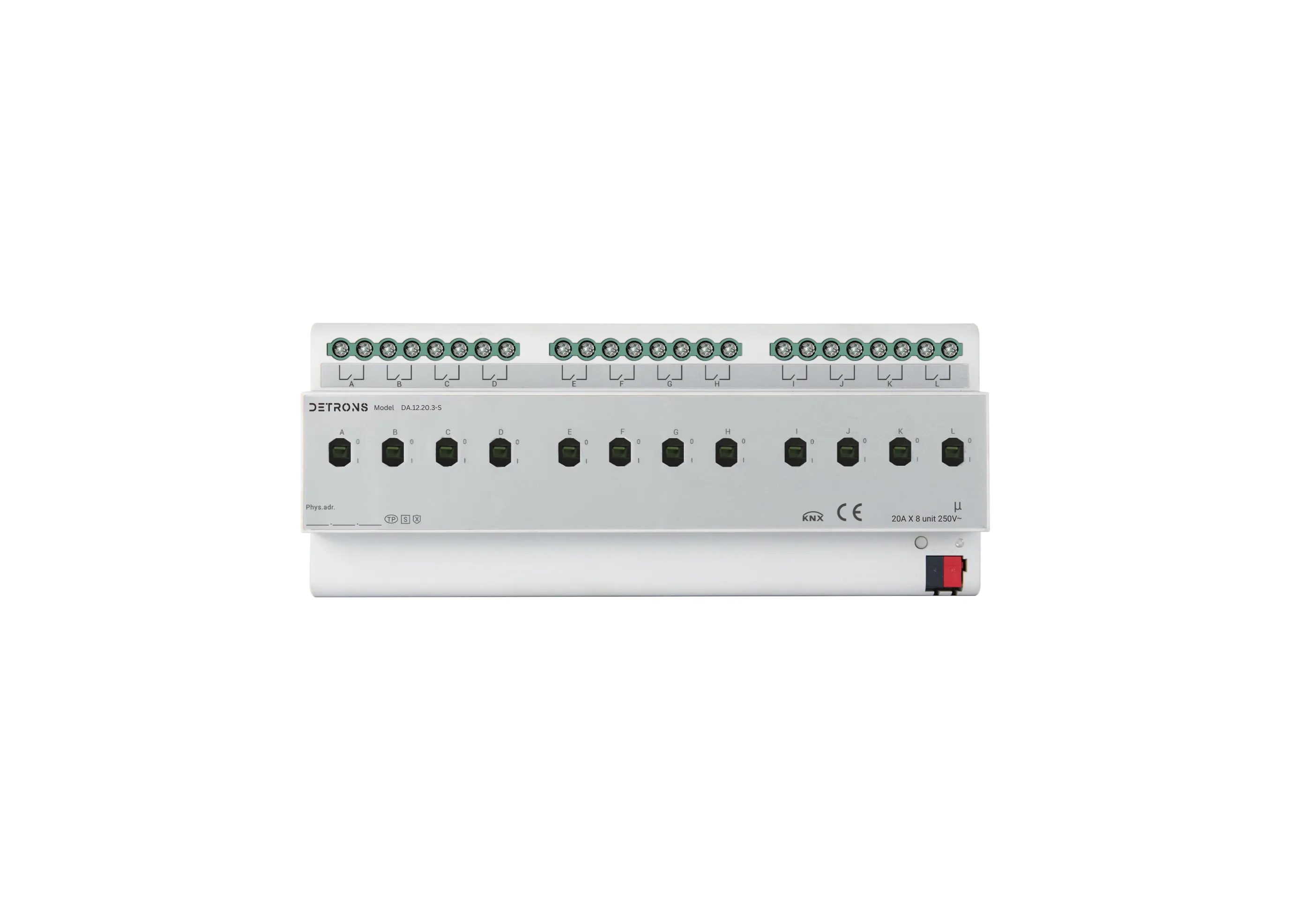

KNX Switch Actuator 12-Fold, 20A

Power: KNX Bus only
Consumption: Bus 12mA (Secure: 6.5mA)
Installation: DIN-rail Mounted

Model:

• DA.12.20.3 (Normal)
• DA.12.20.3-S (Secure)

Specifications:

• 20A per channel
• Rated voltage (Un): 250V AC, 50/60Hz
• Switch type: High-current magnetic relay
• Operation mode: Switch/Heating actuator
• Main KNX functions: Switching, status response, scene control (Normal: 5 folds / Secure: 8 folds), time switching, preset, logic function, threshold, forced operation, etc.

Dimension (mm): 216*90*64
