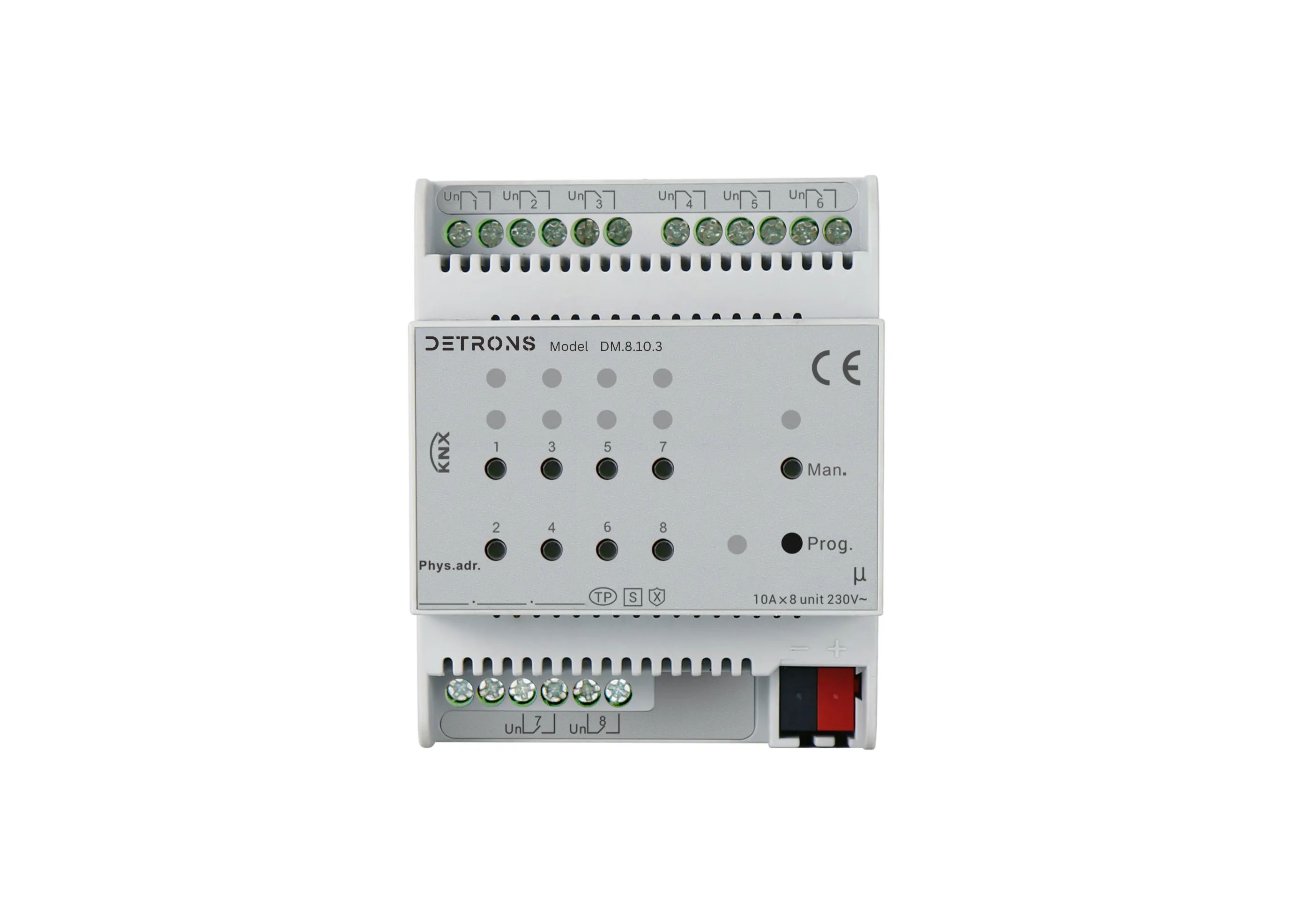

KNX 8-Fold Multi-function Actuator, 10A (Normal / Secure)

• Power: KNX Bus only
• Consumption: Bus 12mA (Secure: 10mA)
• Installation: DIN-rail Mounted
• Model:
  • DM.8.10.3 (Normal)
  • DM.8.10.3-S (Secure)

Specifications:

• 10A per channel
• Rated voltage (Un): 230V AC, 50/60Hz
• Switch type: High-current magnetic relay
• Main KNX functions:
  • Switching
  • Status response
  • Scene control (8 folds)
  • Time switching
  • Preset
  • Logic function
  • Threshold
  • Forced operation
  • Shutter control (AC/DC/dry contact motor type)
  • Fan control
  • Valve control (2-pipe & 4-pipe heating/cooling)

• Dimension (mm) : 72*90*64
